HIGH-PRESSURE STEAM BOILERS
High-pressure steam generator, with flame inversion, smooth tubes and turbulators. Efficiency 90% for OR version,94% for HP version, and up to 96% for EC versions.

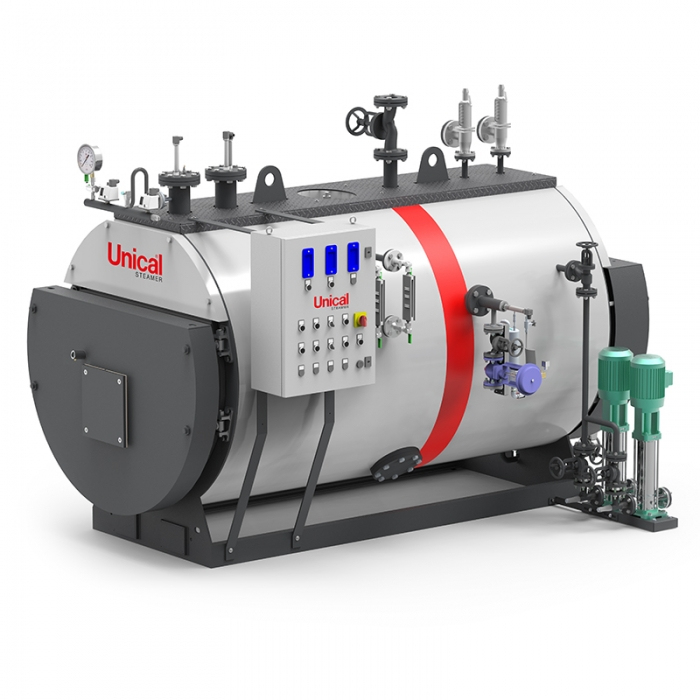

The BAHR’12 series is a family of smoke tube steam generators, flame inversion with a wet bottom.
The standard version is designed for a safety pressure up to 12 bar (higher pressure available on request) and a steam production from 300 to 6000 kg/h.

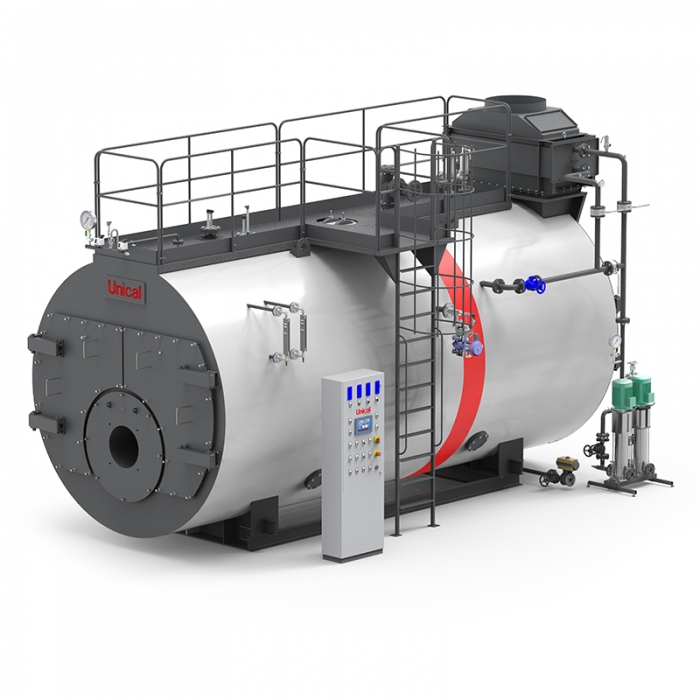

High-pressure monobloc steam generator, with 3 effective smoke passes, horizontal, efficiency 90% for the OR version, 94% for the HP version, and up to 96% for the EC versions
Thanks to the large evaporating chamber optimally sized, the title of the saturated steam leaving the generator is of the highest quality.
Standard safety pressure up to 12 bar (higher pressure available on request) and output from 800 to 4000 kg/h. With a large steam chamber and large evaporator for a high steam quality.

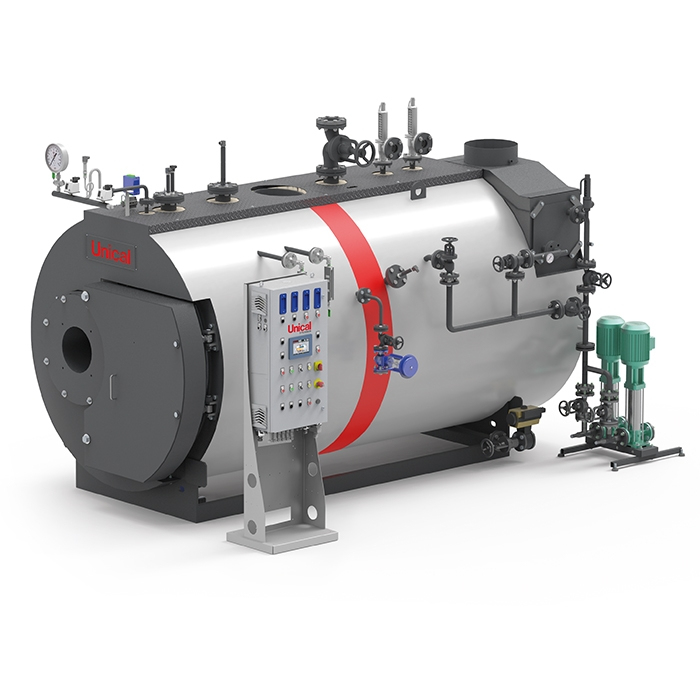

High-pressure, monobloc, steam generator, with 3 effective smoke passes, with wet bottom, horizontal, efficiency 90%, up to 96% for version EC
It is designed for a maximum safety pressure up to 12 bar (or higher on request). The range includes various models with steam production from 2000 to 22000 kg / h.
